The TNM-13M comes standard with the Honda GXV390, 13Hp pull start engine and alloy pulleys.
(A steel pulley upgrade is available for this model).

The 13Hp is best suited for small to medium acreages, with a 2.1 litre fuel capacity you can expect to mow up to 1.9 acres on a tank of fuel. Its features include our tough 5mm steel deck, quick adjustable height control turnbuckle, standard centre or offset side drawbar positions, easy maintenance to all belts, triple bar blades and alloy pulleys.

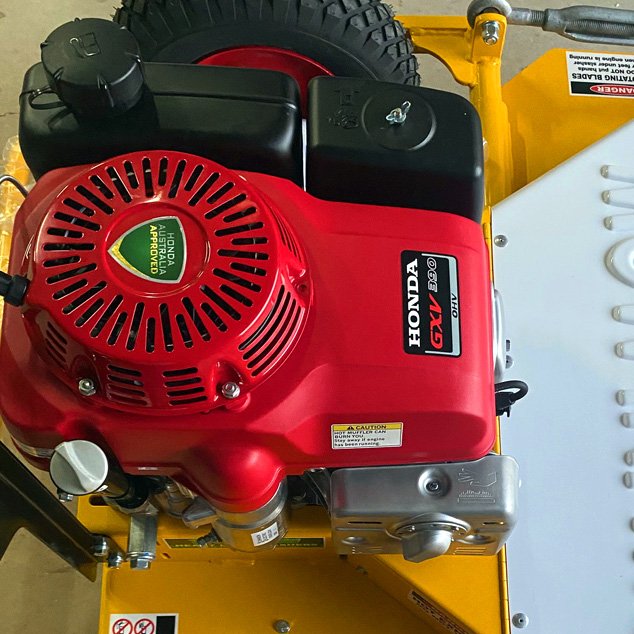

Honda GXV390 Manual Start 13Hp engine
More Engine Details >

Overall length: 2000mm
Deck length: 1350mm
Deck width: 1200mm
Height: 550mm
Tyre size: (6ply) 4.00 – 8
Cutting height: 20mm – 200mm
Cutting deck: 5mm steel – powdercoated
Cutting width: 1170mm, 46” cutting width – rear grass discharge
Dry mass: 180kg
Fuel capacity: 2.1 litres
Oil capacity: 1.1 litres
Start options: Manual/Pull
Cutting speed: Up to 10km/hr
Acres per hour: Up to 1.9 acres/hour
Blades: Triple Bar Blades
Belts: Quality low stretch Kevlar B section belts
Pulleys: Alloy pulleys are standard on this model (Upgrade available)
Draw Bar: 50mm coupling or tongue & pin draw bar
